LED Control Units
Brand Filter:
All
RF Touch Remote LED Control Unit
Code Voltage Channel Color Mode Ourput Power Control Distance Control Mode IP Rating Dim Radio Frequency
CUIL.X001 12-24 VDC 10Ax3CH (MAX. 30A) 18 360W / 720W >20M PWM (CODED) IP20 433Mhz
CUIL.SC12 12-24 VDC 10Ax3CH (MAX. 30A) 1 360W / 720W >20M PWM (CODED) IP20 433Mhz
RF Remote LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Dim Radio Frequency
CUIL.SC16 12-24 VDC 4x2CH(MAX.8A) 1 96W/192W >20M PWM(CODED) IP20 433Mhz
RF Touch Remote RGB LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Dim Radio Frequency
CUIL.X008 12-36 VDC 5x4CH(MAX.20A) - 4 x (60-180)W 30m PWM (CODED) IP20 2.4 Ghz
CUIL.X009 3VDC (AAAX2) 4 - - - PWM (CODED) IP20 2.4 Ghz
RF Touch Remote Single LED Control Unit
CodeVoltageChannelColor ModeOutput PowerControl DistanceControl ModeIP RatingDimRadio Frequency
CUIL.SC153VDC (AAAX2)41-30mPWM (CODED)IP202.4 Ghz

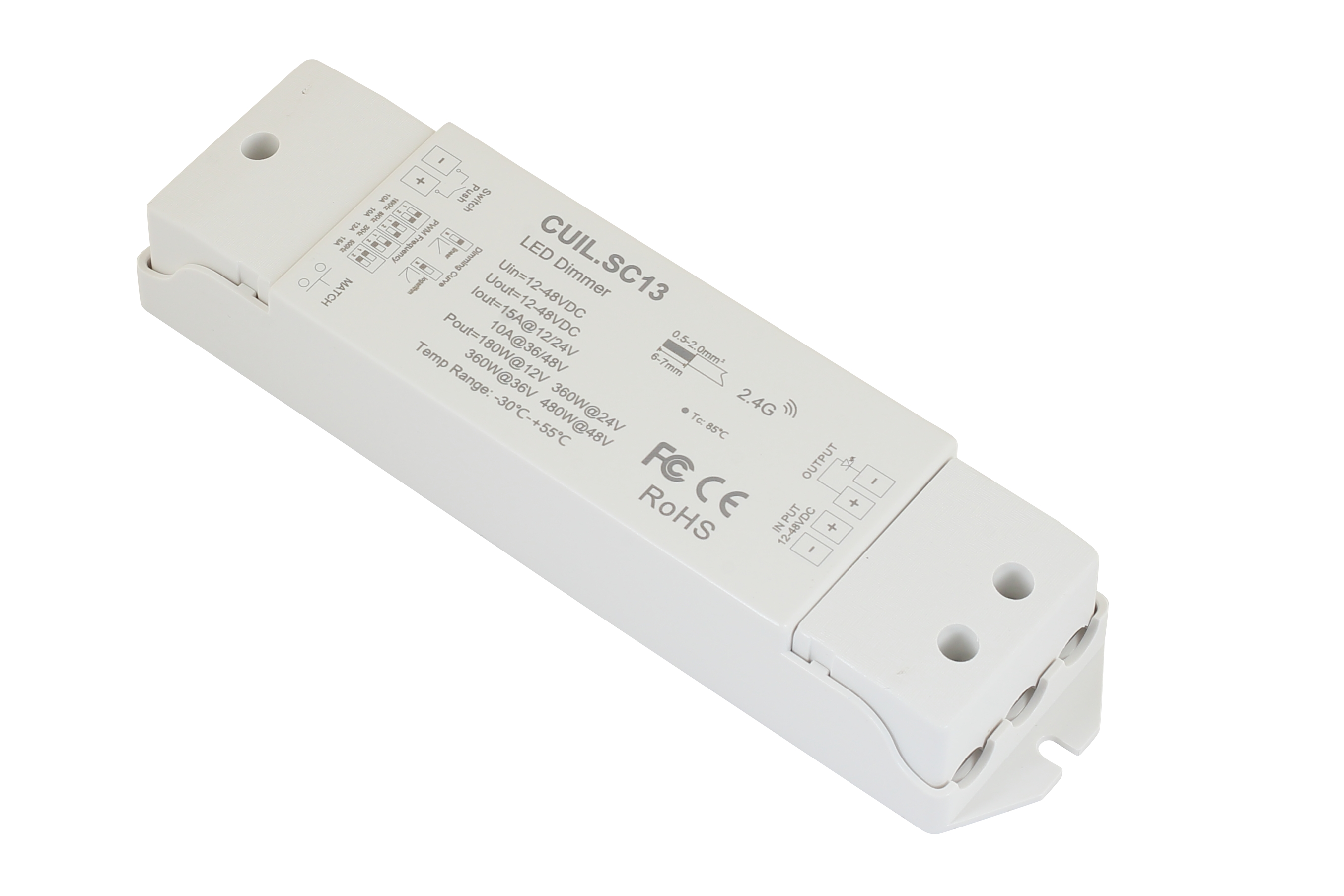

CUIL.SC1312-24 VDC1CH (MAX. 15A)1180W / 360W30mPWM (CODED)IP202.4 Ghz
RF Remote LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Dim
CUIL.X003 12-24 VDC 4Ax3CH (MAX. 12A) 8 144W / 288W >10M PWM IP20
RGB IR Remote LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Dim
CUIL.X021 7-24 VDC 10Ax3CH (MAX. 30A) 7 210W / 720W >10M PWM IP20
CUIL.X022 12 VDC 2Ax3CH (MAX. 6A) 20 72W >8M PWM IP20
WiFi LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Radio Frequency
CUIL.X007 12-24 VDC 4Ax5CH(MAX.20A) 18 240W Wİ-Fİ IOS/ANDROID IP20 Android 4.0 or IOS 9.0
Bluetooth RGB Remote LED Control Unit
Code Voltage Channel Color Mode Output Power Control Distance Control Mode IP Rating Dim Radio Frequency
CUIL.SC14 6-24 VDC MAX. 15A 1 90W / 360W >10M PWM IP63 433.92Mhz
CUIL.X004 6-24 VDC 5Ax3CH (MAX. 15A) 18 90W / 360W >10M PWM IP63 433.92Mhz
CUIL.SC14.RM07 3 VDC - 1 - >10M PWM IP20 433.92Mhz
CUIL.X004.RM05 3 VDC - 18 - >10M PWM IP20 433.92Mhz
Magic LED Control Unit
Code Voltage Maximum Control Color Mode Animation Control Distance Control Mode IP Rating Dim
CUIL.X005 5-24 VDC 1024 Entegre 7 133 50M DWM IP20
LED Amplifier (Repeater)
Code Voltage Channel Color Mode Output Power Size (mm) IP Rating
CRIL.X032 12-24 VDC 10Ax3CH (MAX. 30A) 3 360W / 720W 72*79*33 IP20
CRIL.SC37 12-24 VDC 10Ax3CH (MAX. 30A) 1 360W / 720W 72*79*34 IP21
CRIL.X034 12-24 VDC 6Ax4CH (MAX. 24A) 4 288W / 576W 81*64*24 IP22
